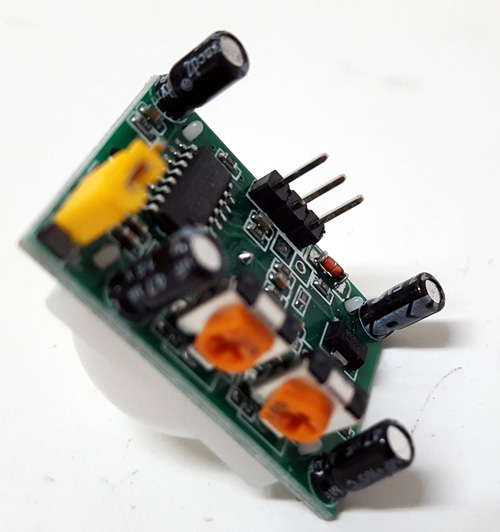

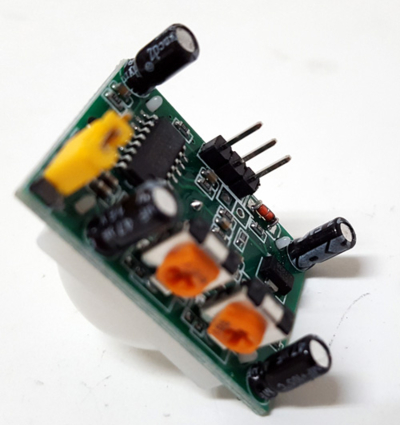

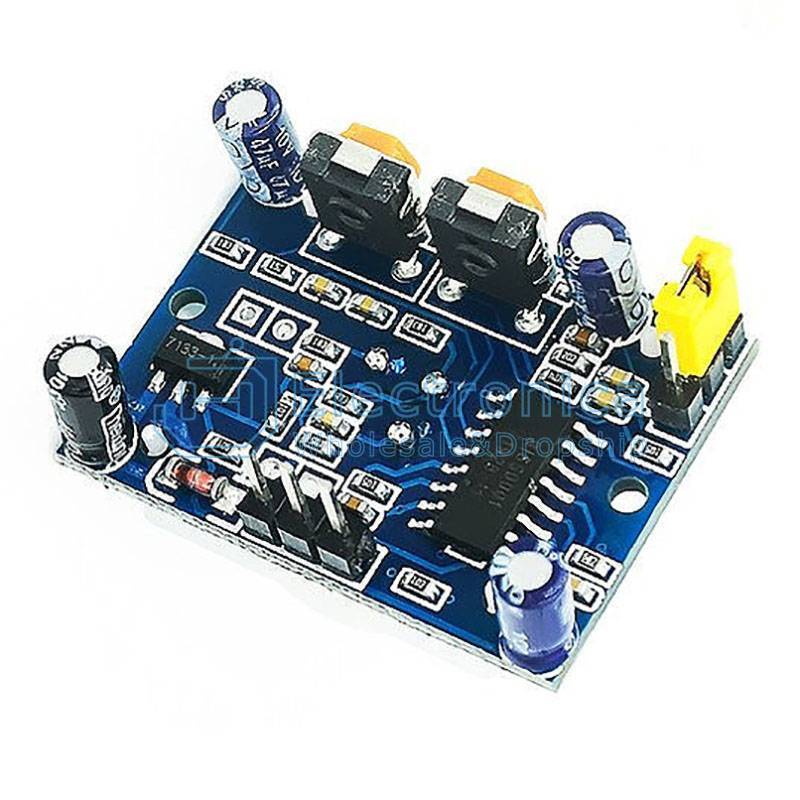

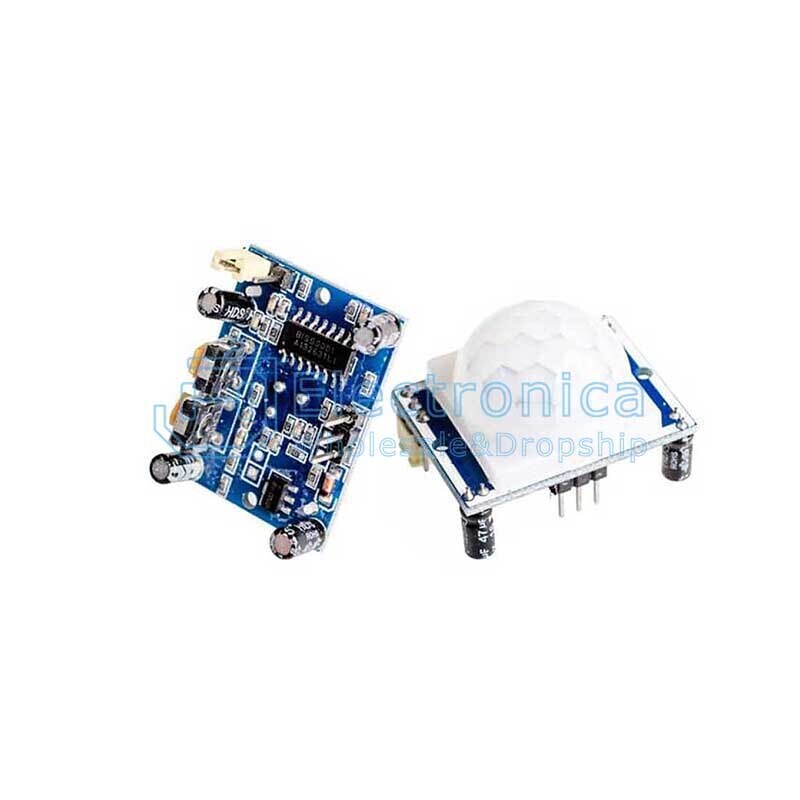

PIR module HC-SR501

PIR module HC-SR501.infrarood

Voor b.v.b. in een ARDUINO omgeving.

Met instellingen voor gevoeligheid en tijdsduur.

Detectie afstand 3-7mtr

Voeding: 4,5-20V

Operating voltage range:DC voltage 4.5-20V

Quiescent current:<50uA
Level output:High 3.3 V / low 0V
Trigger mode:L can not be repeated to trigger /H repeat
Delay time:5-200S (adjustable) can be produced in a few seconds - - - for a few seconds
Blocking time:2.5S (default) can be produced in a few seconds of the range of zero - for a few seconds
Circuit board size:32mm * 24mm
Induction angle <100 degree cone angle
Working temperature:Negative 15 to 75 Centigrade

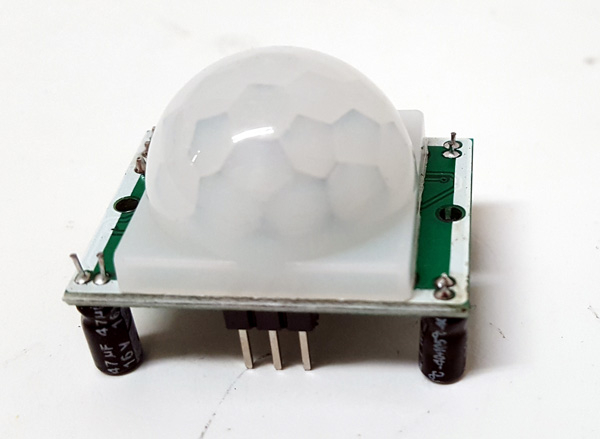

Induction lens size Diameter: 23mm
