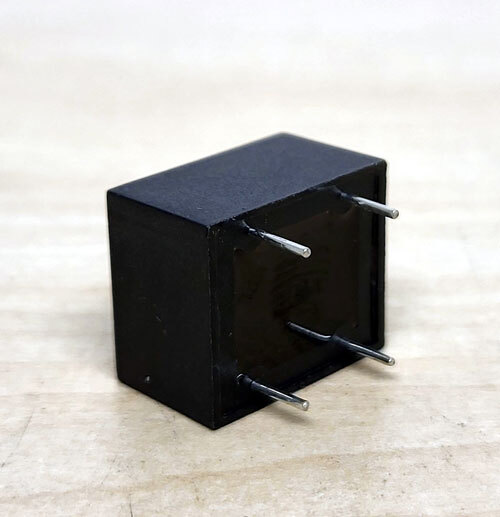

ZMPT-112 stroom-volt trafo
Meettransformator ZMPT-112
overzet verhouding: 1000:1000 2mA
DCR: 96 Ohm
| Rated input current: | 2mA | ||
| Rated output current: | 2mA | ||
| Transformation ratio: | 1000：1000 | ||
| Phase difference: | ≤45＇ | ||
| Linear range: | 0~10mA | ||
| Load Resistance: | 50Ω | ||
| Accuracy level: | 0.2 | ||
| Operating Temperature: | -40℃~+85℃ | ||
| Isolation Withstand Voltage: | 3000V | ||
| Sealing material: | Epoxy resin | ||
