Stappen motor

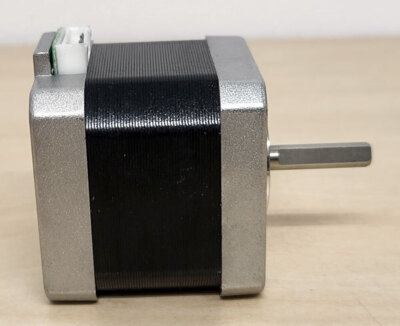

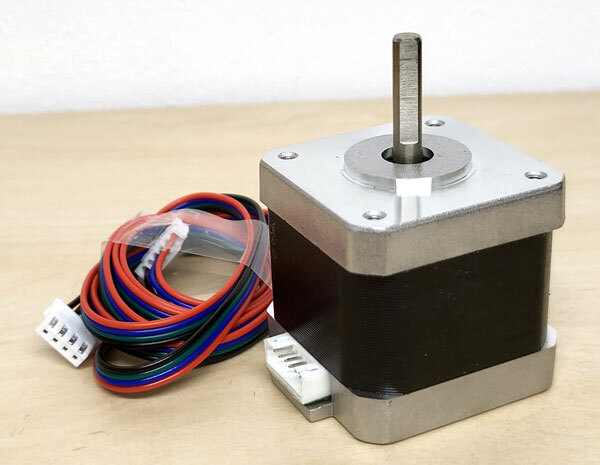

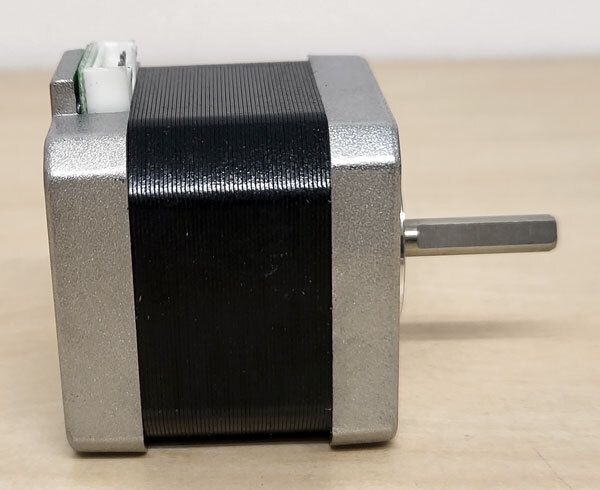

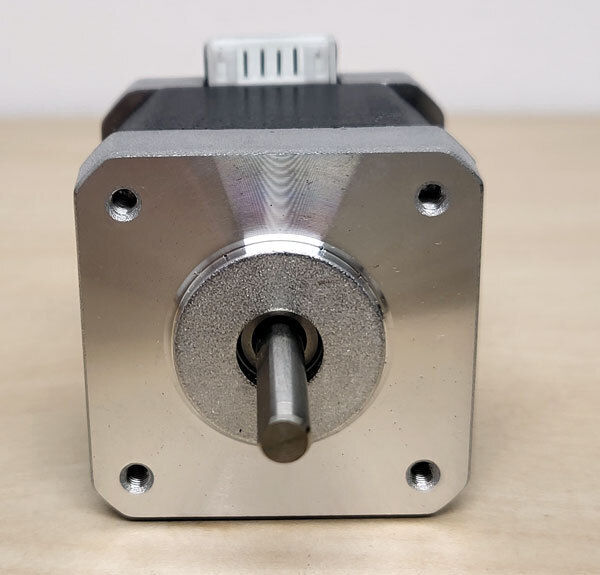

Stappenmotor 17H54401-1740A 42
1,8 graden (200 st)
Afm: 42x42x42mm
Asdiam: 5mm lengte: 20mm
Bevestigingsgaten: M3
Step Angle：1.8°
Temperature Rise：80℃ MAX
Ambient Temperature：-20℃Max~+50℃
Insulation Resistance：100MΩMin.,500VDC
Dielectric Strength：500VAC for 1 minute
Shaft Radial Play：0.02Max(450g-load)
Shaft Axial Play:0.08Max(450g-load)
Max.Radial Force:28N(20mm from the flange)
Max.Axial Force：10N
