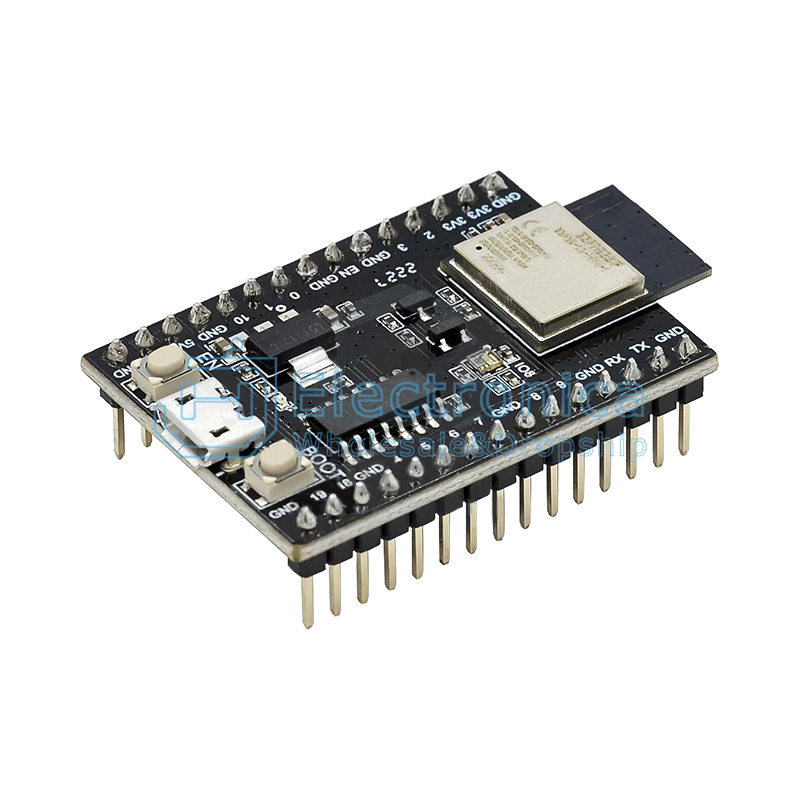

ESP32-C3 ontwikkelbordje

Key Description:
EN: The Lexin module enables the foot, and when the button is pressed, the module is in a reset state
ESP BOOT: Press the button to manually enter the download mode on the BOOT pin of the Lexin module
Product Introduction:
1.ESP32C3-MINI-1 is a universal Wi Fi and low-power Bluetooth dual-mode module with powerful functions. This module uses a PCB onboard antenna and is equipped with 4MB SPI flash
2.Pin arrangement: All availabel GPIO pins have been led out of the development board arrangement pins
3. Power converter, input 5V, output 3.3
4. USB interface, can be used as the power supply interface for the development board, can burn firmware to the chip, and can communicate with the chip through the USB protocol
5. Control the I/O port level of TX/RX, which can be selected as 3.3V or 5V, with a default of 3.3V
6. Single chip USB to UART bridge, which can increase the transmission rate to 3Mbps
