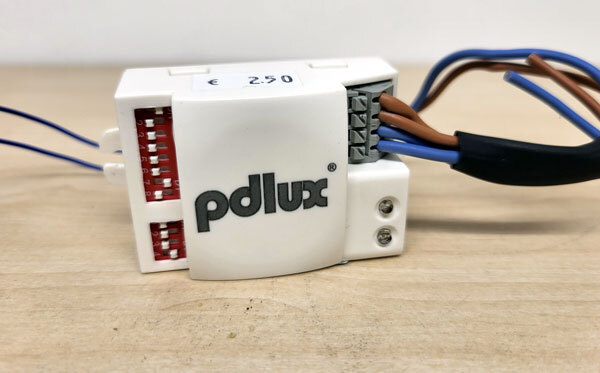

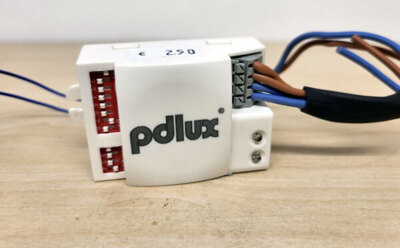

Bewegings sensor PDLUX PD-MV1001
Microwave bewegings sensor PDLUX PD-MV1001
Freq: 5,8GHz
230V-500W. schakelfunctie.
Diverse instelmogelijkheden b.v.b. tijd-afstand etc.
Afm: 57x39x19mm
Product Description
Power source: 220V AC
Power frequency: 50Hz
Installation: Ceiling mounting and wall installation
HF system: 5.8GHz, CW radar and ISM band
Transmission power: <0.2mW
Detection angle:
Ceiling installation: 360°
Wall installation: 180°
Maximum rated load: 500W (220V AC incandescent cosΦ =1) and 200W (220V AC fluorescent cosΦ =0.5)

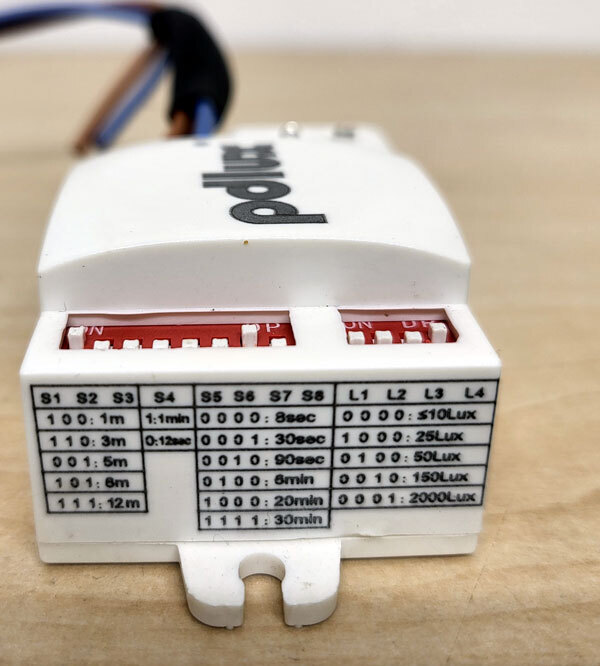

Detection range: 1, 3, 5, 8 and 12m (radii)
Time setting: 6, 30 seconds and 1, 6 and 12 minutes
Light-control: 5, 10, 50, 150 and 2, 000 lux
Standby power: Approximately 0.5W
